Elbow endoprosthetics

Overview

Primary endoprosthetics

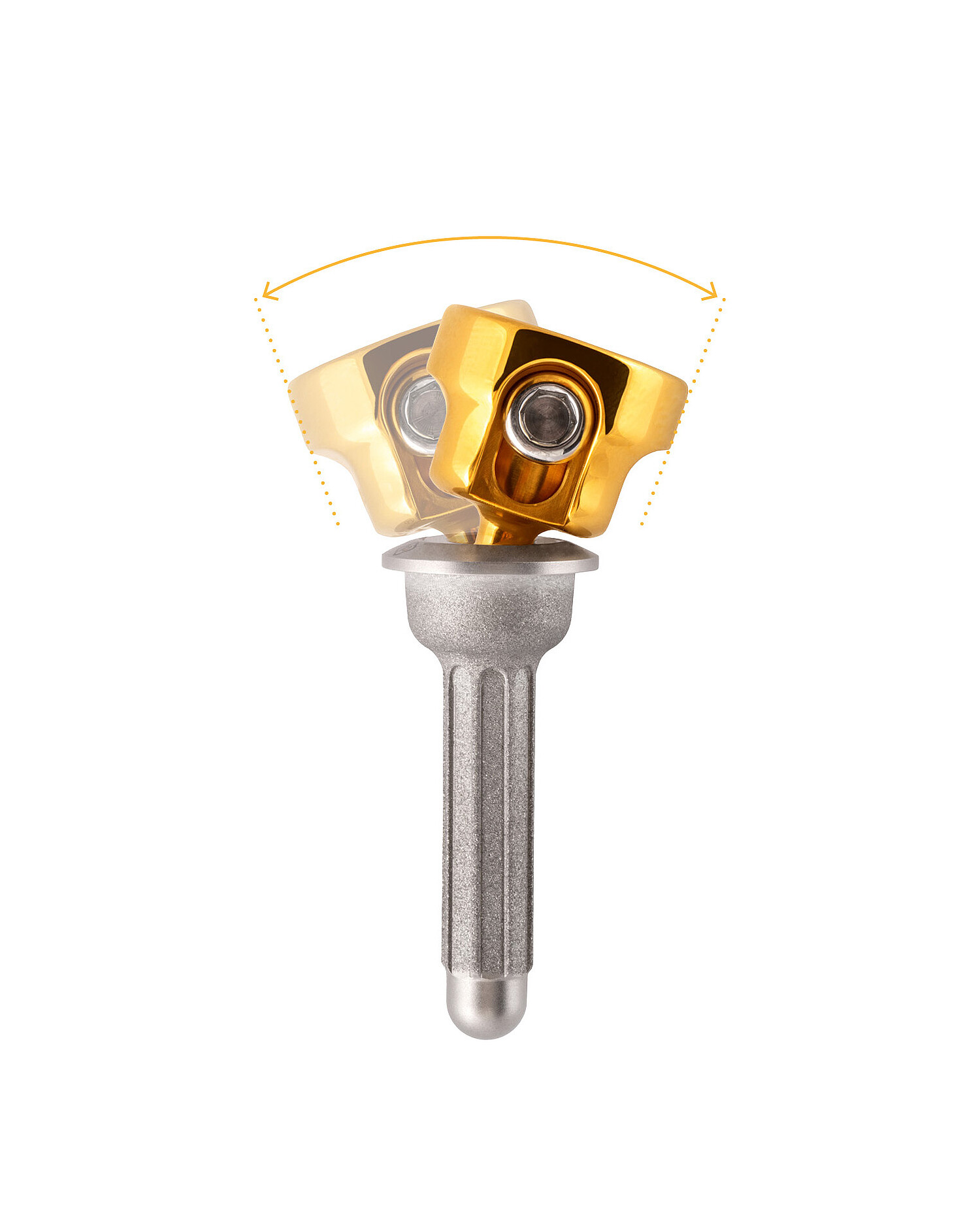

ICARA® radial head system

The completely innovative concept of the ICARA® radial head system allows for intraoperative adjustment and fine-tuning of the prosthesis preload. The three-part, modular head component can be adjusted intraoperatively to the required neck length for restoring joint tension and stability. This adjustment is continuously variable.

  • degenerative joint diseases (e.g. osteoarthritis, avascular necrosis)
  • post-traumatic osteoarthritis
  • Fractures
  • rheumatoid arthritis
  • Revision of prostheses with bone defects (Paprosky Type 3a/3b)
  • Bone reconstruction with transplants possible
  • replacement of non-load-bearing bone segments
  • Tumor-related resections
  • massive bone loss (e.g. Morbus Gorham, revisions)
  • Endoprosthetic treatment of fractures, pseudarthroses
  • distalization of the rotation center
    • stable fixation by shifting the torque of the prosthesis to the level of the radial tuberosity
  • various stem options
    • cemented and cementless stems with variable collar heights to prevent stem subsidence.
  • continuous length adjustment
    • avoidance of overstuffing or gapping: the neck length is adjustable by 4 mm.
  • multidirectional self-adjustment
    • minimization of force peaks on the capitulum of the humerus due to optimal alignment of the head. The head can rotate up to 20°, allowing for perfect adjustment.
  • implatan®
    • TiAl6V4 (cementless stem and head components) according to ISO 5832-3
  • implavit®
    • CoCrMo (cemented stem components) according to ISO 5832-4
  • UHMWPE
    • according to ISO 5834-2 (PE inserts in stem components)
  • Head components are coated with TiN (Titanium Nitride).
  • head components
    • Ø 19 mm and Ø 22 mm
  • stem components
    • 12 cementless and cemented options, Ø 6 mm and Ø 8 mm, available in Type S, Type 1, and Type 2, each in two lengths: 35 mm and 50 mm.
  • collar thickness
    • type S: 2 mm
    • type 1: 3.5 mm
  • CE Marking

Click here for the ICARA® flyer

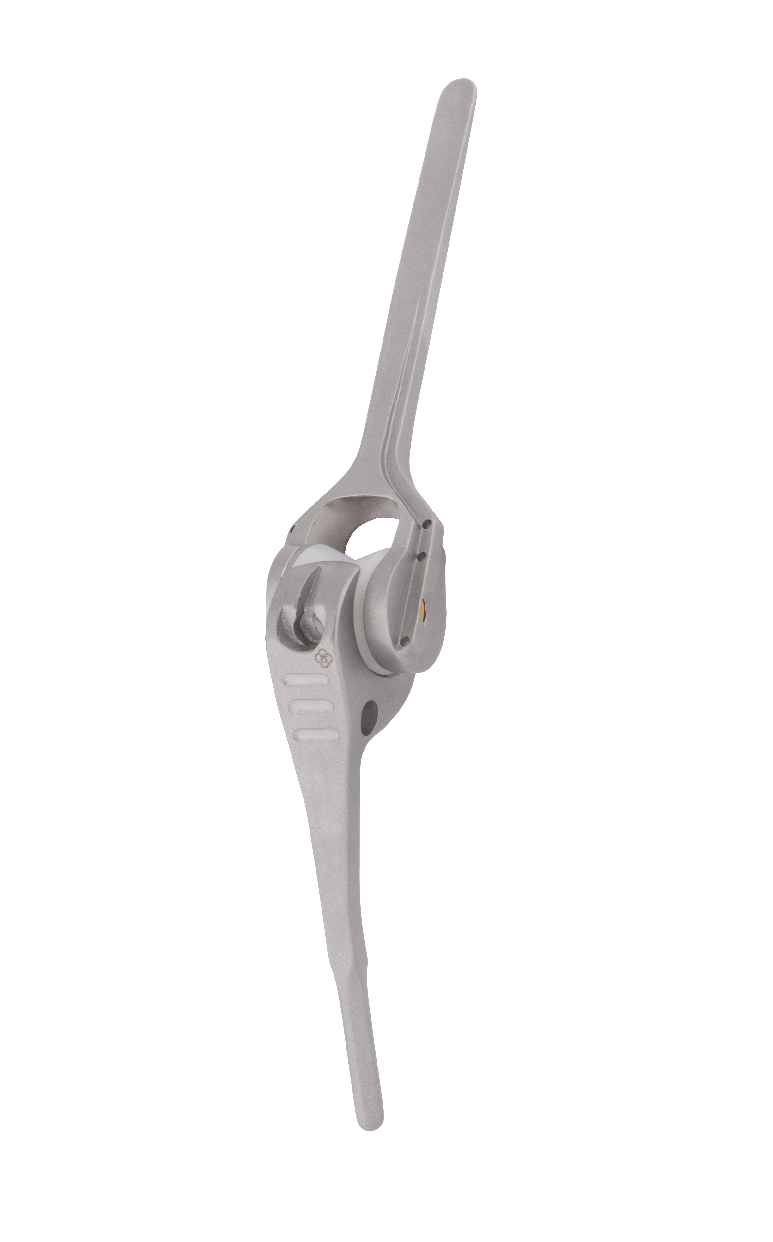

NES Elbow System

The NES system enables a non-constrained replacement of the humeroulnar joint while preserving the physiological range of motion. The minimally invasive surgical technique ensures ligament and soft tissue preservation while meeting the requirement for minimal bone resection.

  • rheumatoid arthritis
  • primary osteoarthritis
  • post-traumatic osteoarthritis
  • trauma (non-reconstructable intra-articular fractures of the distal humerus)
  • post-traumatic conditions (non-healing fractures or persistent dislocations in elderly patients)
  • postoperative conditions following previous surgeries, with or without the use of implants
  • soft tissue stabilized
    • no forced guidance by implantcomponents
  • bone-preserving design
    • slim design for minimal resection while preserving soft tissue structures
  • sloppy hinge
    • The PE insert allows varus/valgus play, reducing force transmission to the stem anchorage.
  • adjustable constraint options
    • stabilization clip (semi-constrained)
    • coupling ring (constrained)
  • humeral offset
    • Allows adjustment of the joint line and soft tissue tension (+5 mm, +10 mm)
  • physiological range of motion
    • flexion up to 160° and hyperextension possible
  • implavit®
    • CoCrMo according to ISO 5832-4 (humeral and ulnar components)
  • implatan®
    • TiAl6V4 according to ISO 5832-3
  • UHMWPE
    • according to ISO 5834-2 (PE spindle of the humeral components)
  • TiN coating (articulation axis of the humeral components)
  • humeral components
    • 8 variants (left and right), available in sizes:
      • mmall, large, large +5 mm, large +10 mm
  • ulnae components
    • 6 variants (left and right), available in sizes:
      • mini, standard, large
  • additional stabilization options
    • stabilization clip and coupling ring, which can be locked into the lateral recesses of the humeral component
  • CE Marking

Click here for the NES flyer

Revision endoprosthetics

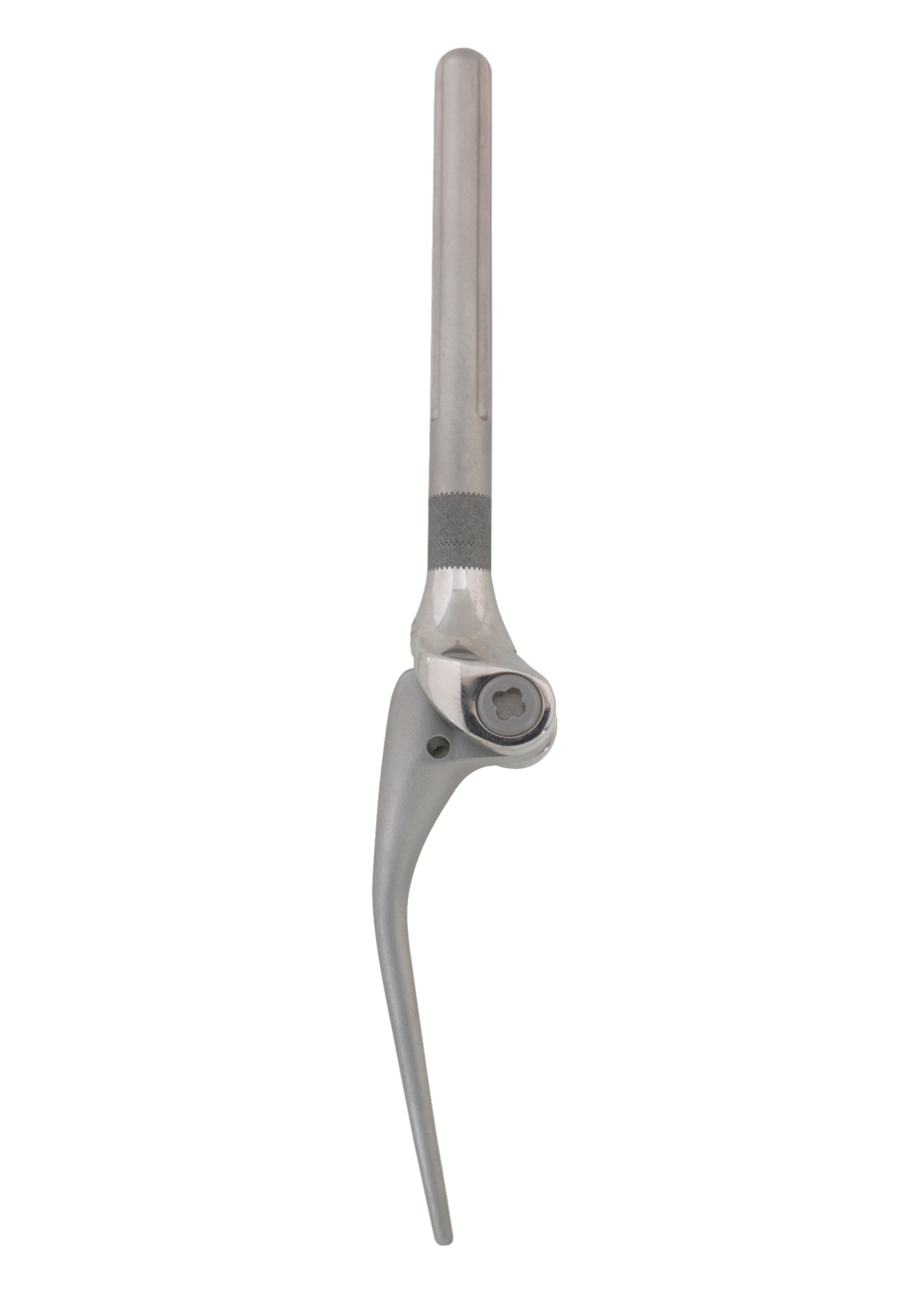

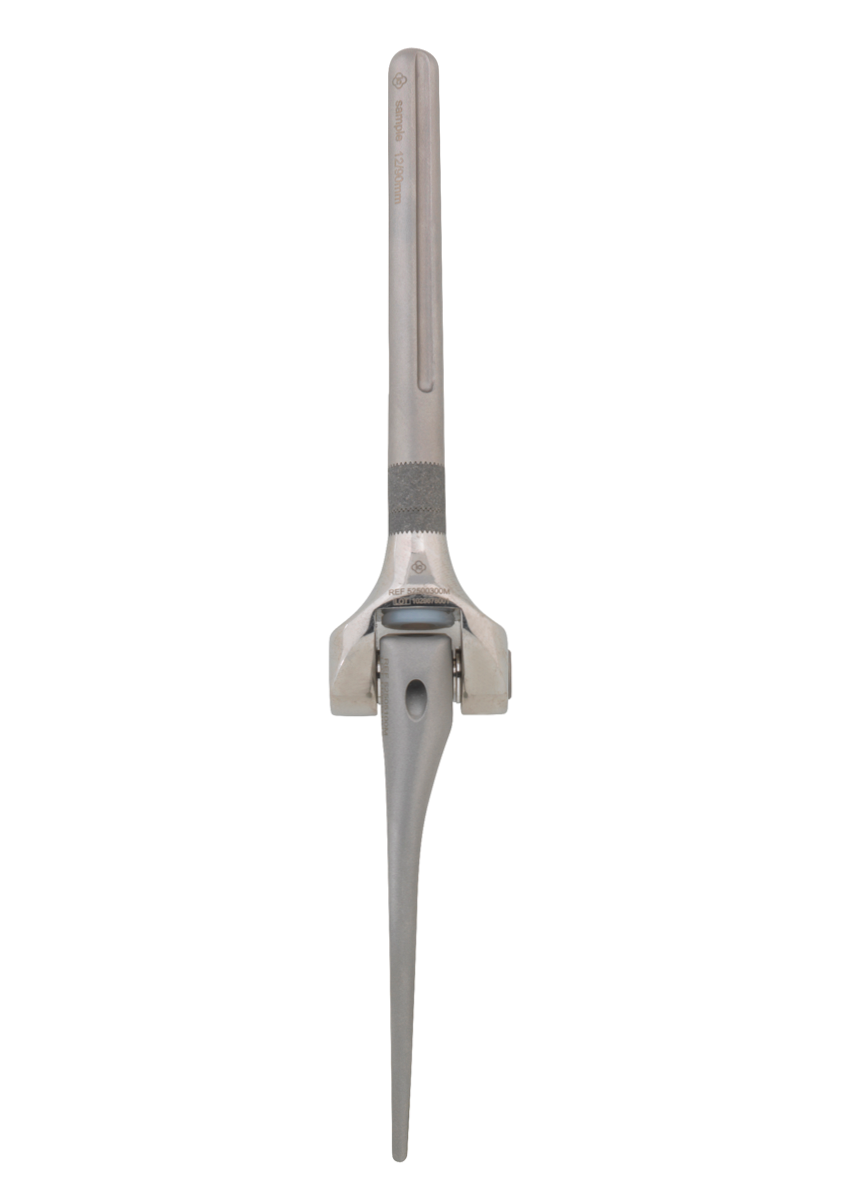

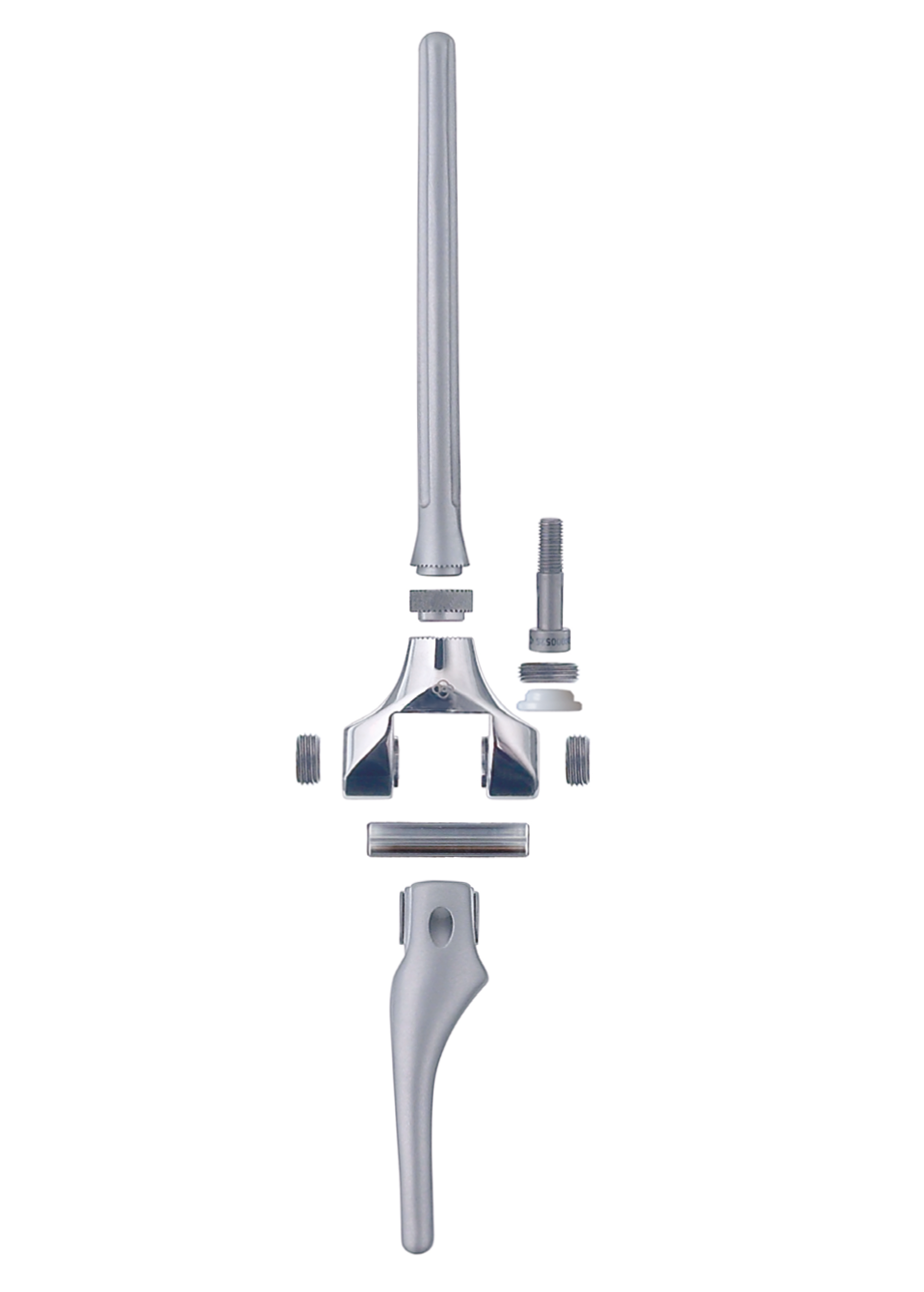

MUTARS® distal humerus 30 mm

MUTARS® distal humerus 30 mm is a fully coupled joint replacement system for the humeroulnar joint. The system has been developed to support the preservation of elbow function.

The MUTARS® distal humerus 30 mm is available in an HD version.The use of polyethylene (PE) as the articulation partner promotes gentle, long-lasting joint guidance. The integrated 7° laxity allows for physiological force transmission to the surrounding soft tissues and improved load distribution. This can minimise the risk of premature stem loosening.

For more information, please follow this link:  HD Focus Page

  • Revision
  • Fracture
  • Bone loss associated with Gorham’s disease
  • pseudarthrosis- Osteoarthritis
  • high modularity and compatibility
  • Rotation adjustment in 10° increments
  • Reconstruction length individually adjustable using extension pieces
  • cemented and cementless stem options
  • cemented and cementless ulnar component options
  • extension pieces, ulnar component cementless, (HD) dist. Humerus sz. 30 mm, cementless stems:  implatan®; TiAl6V4 according to ISO 5832-3
  • (HD) ulnar component cemented, HD ulnar component cementles, cemented stems : implavit®; CoCrMo according to ISO 5832-4
  • axle (HD), ulna anchorage - bushing: implavit®; CoCrMo according to ISO 5832-12
  • ulnar stop: UHMWPE according to ISO 5834-2
  • ulnar stop HD, PE bearing: implacross® E; cross-linked UHMWPE with vitamin E
  • optional for cemented stems, axle, ulnar component cemented (HD): TiN coating
  • cementless ulnar component: implaFix® Duo; cpTi-Beschichtung und HA-Beschichtung according to ISO 13779-2
  • AGILON® stems
  • 5 AGILON® extension pieces: 7,5 mm, 10 mm, 12,5 mm, 15 mm und 17,5 mm
  • MUTARS® (HD) distal humerus sz. 30 mm
  • MUTARS® (HD) ulnar stop
  • FC or SC PE bearings for HD
  • Axle for MUTARS® (HD) distal humerus
  • MUTARS® (HD) ulnar component
  • Reconstruction length ≥ 30mm
  • CE Marking
Tumour endoprosthetics

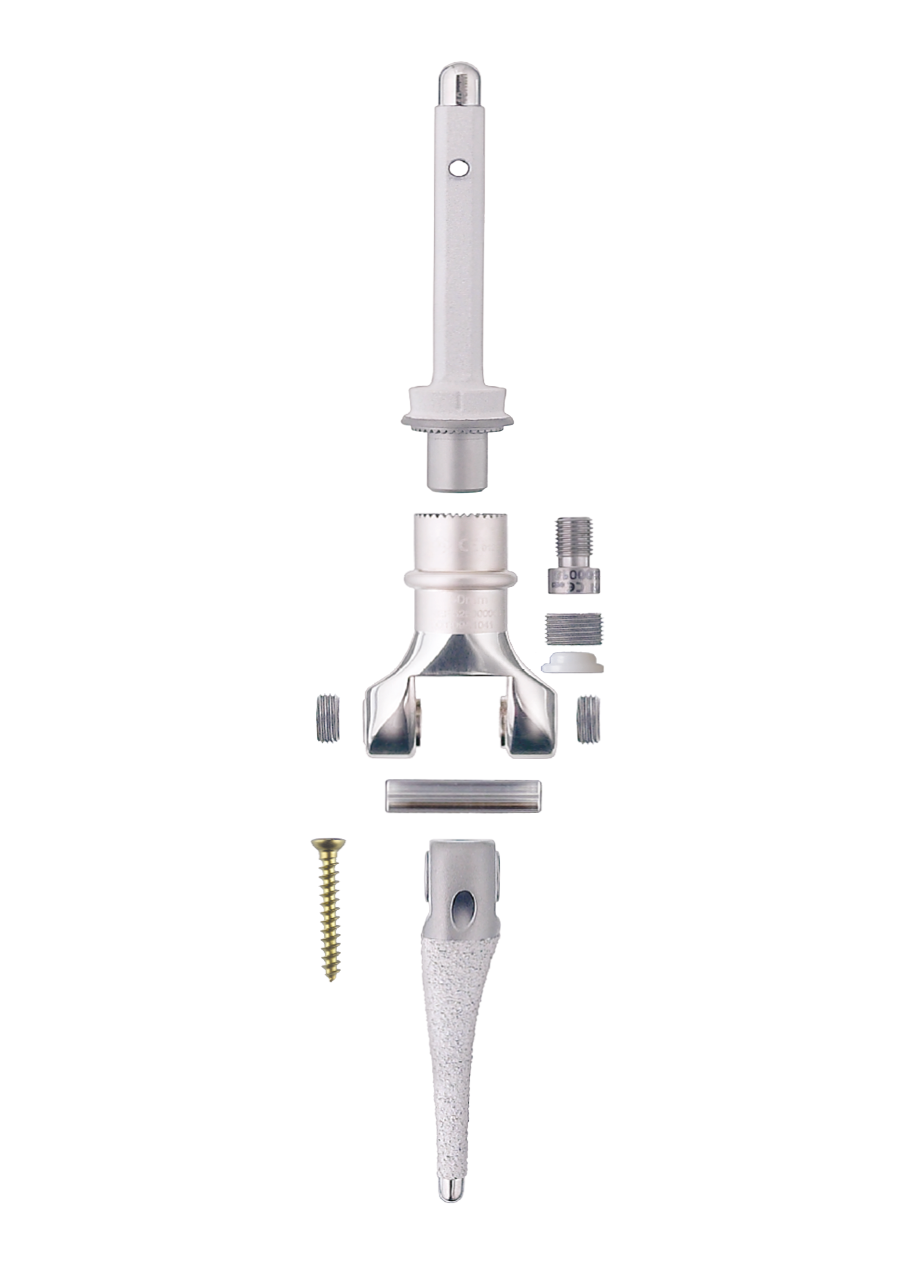

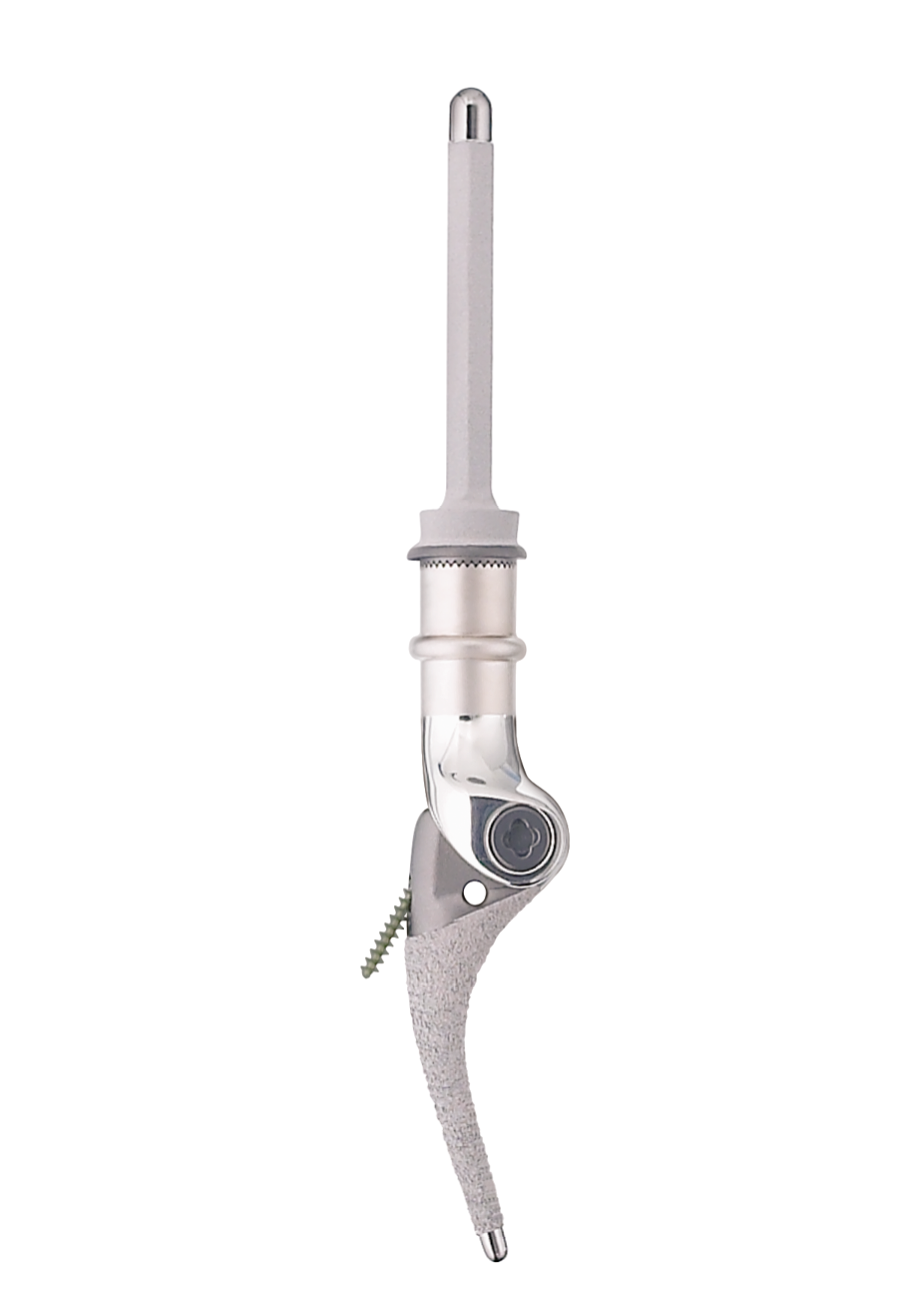

MUTARS® distal humerus 50 mm

The MUTARS® Distal Humerus 50 mm is a fully coupled joint replacement system for the treatment of complex bone defects around the elbow. The system has been specifically developed for demanding reconstructive procedures and is used particularly following tumor resections. Its stable design supports reliable joint articulation and helps preserve elbow function.

The MUTARS® Distal Humerus 50 mm is optionally available with a silver coating. The properties of silver are utilized in the coated components to help reduce the risk of infection and increase the longevity of the prosthesis.

In addition, the MUTARS® Distal Humerus 50 mm is available in an HD version.

For more information, please follow this link: HD Focus Page

  • Tumour in the distal humerus
  • Revision
  • Fracture
  • Bone loss associated with Gorham’s disease
  • pseudarthrosis
  • osteoarthritis
  • high modularity and compatibility
  • Rotation adjustment in 10° increments
  • Reconstruction length individually adjustable using extension pieces and connecting part
  • simplified revision due to the connecting part
  • cemented, cementless and modular stem options
  • cemented and cementless ulnar component options
  • soft tissue reattachment possible via the attachment tube
  • extension pieces, connecting part, cementless stems, ulnar component cementless, (HD) dist. humerus 50 mm: implatan®; TiAl6V4 according to ISO 5832-3
  • (HD) ulnar component cemented, HD ulnar component cementles, cemented stems : implavit®; CoCrMo according to ISO 5832-4
  • axle (HD), ulna anchorage - bushing: implavit®; CoCrMo according to ISO 5832-12
  • ulnar stop: UHMWPE according to ISO 5834-2
  • ulnar stop HD, PE bearing: implacross® E; cross-linked UHMW-PE with vitamin E
  • EPORE® HA-Kragen: TiAl6V4 mit EPORE® HA
  • Cementless ulnar component: implaFix® Duo; cpTi-Beschichtung und HA-Beschichtung according to ISO 13779-2
  • Optional for cemented stems, axle, ulnar component cemented (HD): TiN coating
  • Optional for dist. humerus 50 mm, extension pieces, connecting part: silver coating
  • Optional for cementless humeral stems: implaFix® HA; HA coating according to ISO 13779-2
  • EPORE® HA collar: EPORE® HA; TCP coating
  • MUTARS® humeral stem type A modular with EPORE® HA collar
  • MUTARS® humeral stems
  • 3 MUTARS® humeral extension pieces: 20 mm, 40 mm and 60 mm
  • MUTARS® humeral connecting part 80 mm
  • MUTARS® (HD) distal humerus sz. 50 mm
  • MUTARS® (HD) ulnar stop
  • FC or SC PE bearings for HD
  • Axle for MUTARS® (HD) distal humerus
  • MUTARS® ulnar component (HD)
  • Reconstruction length ≥ 60mm
  • CE Marking

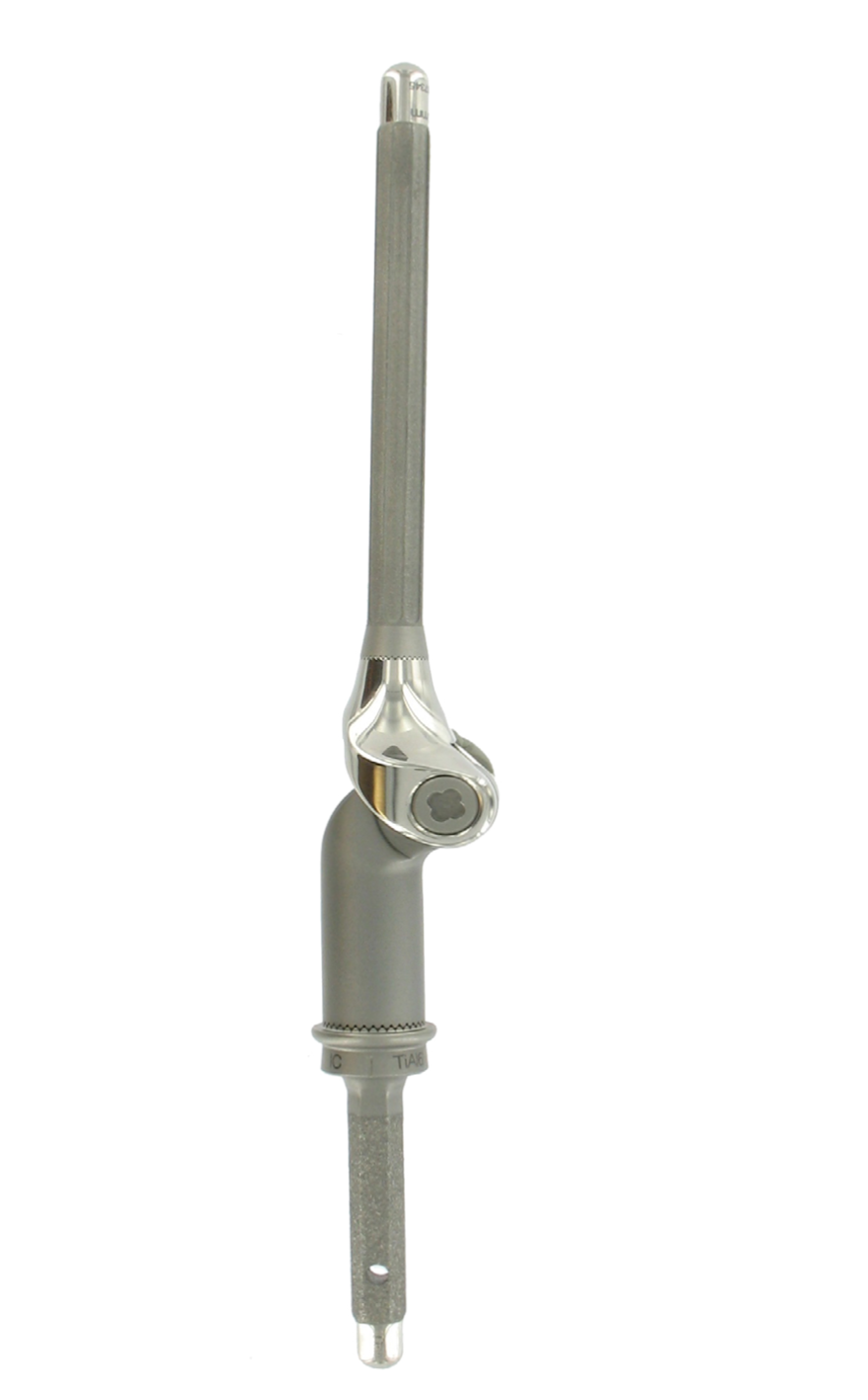

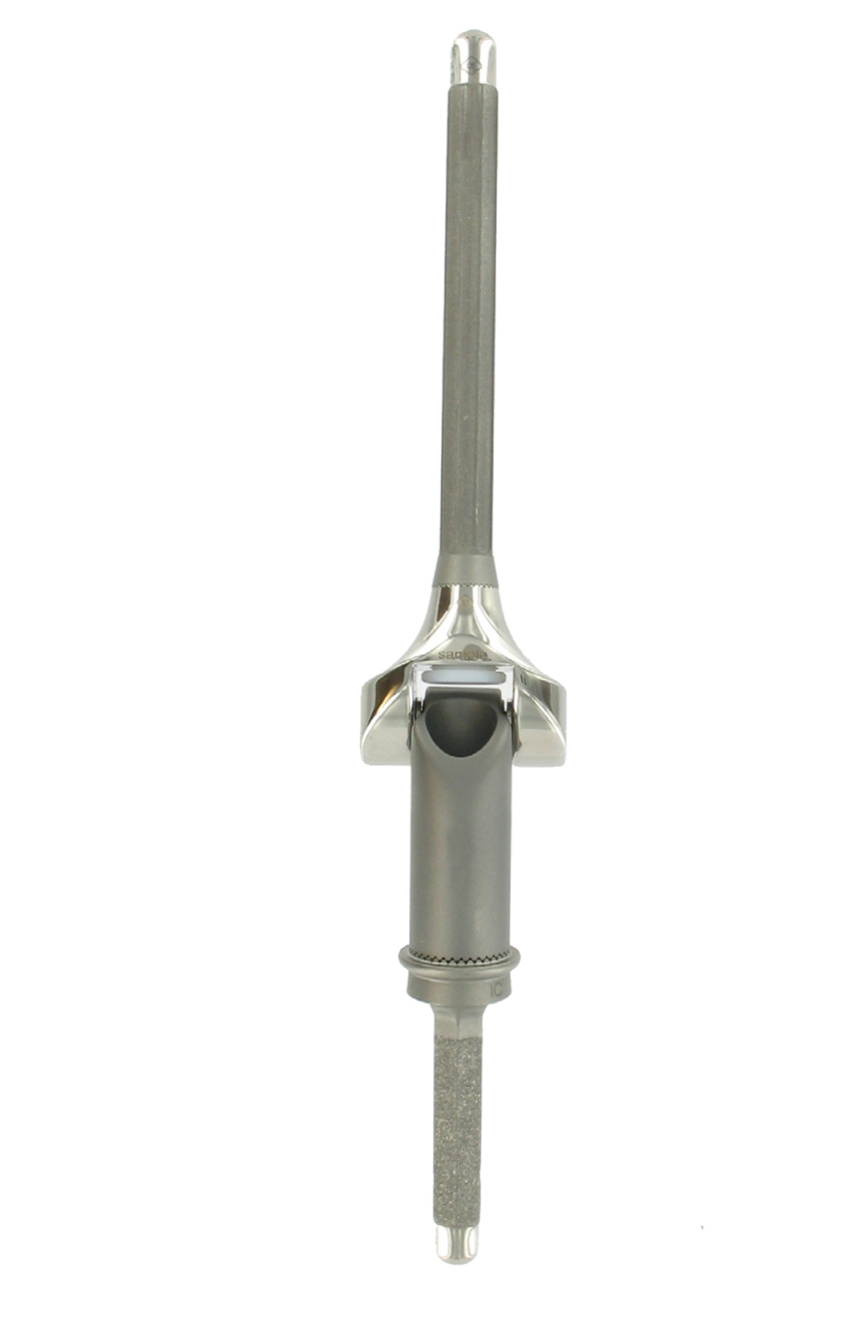

MUTARS® proximal ulna

The MUTARS® Proximal Ulna is a fully coupled joint replacement system for the reconstruction of the humeroulnar joint. The system has been specifically developed for demanding reconstructive procedures and is used particularly following tumor resections. Its stable design supports reliable joint articulation and helps preserve elbow function.

The MUTARS® Proximal Ulna is optionally available with a silver coating. The properties of silver are utilized in the coated components to help reduce the risk of infection and increase the longevity of the prosthesis.

In addition, the MUTARS® Proximal Ulna is available in an HD version.

For more information, please follow this link:  HD Focus Page

  • Tumour in the proximal ulna
  • Fracture
  • Revision
  • Bone loss associated with Gorham’s disease
  • High modularity and compatibility
  • Rotation adjustment in 10° increments
  • Reconstruction length individually adjustable using extension pieces and a connecting part
  • Simplified revision due to the connecting part
  • Cemented, cementless and modular stem options
  • Soft tissue reattachment possible
  • Extension pieces, connecting part, cementless stems, EPORE® HA colar, proximal ulna, dist. humerus 30 mm (HD):  implatan®; TiAl6V4 according to ISO 5832-3
  • Cemented stems: implavit®; CoCrMo according to ISO 5832-4
  • Axle (HD), HD proximal ulna, ulna anchorage - bushing: implavit®; CoCrMo according to ISO 5832-12
  • Ulnar stop: UHMWPE according to ISO 5834-2
  • Ulnar stop HD, PE bearing: implacross® E; cross-linked UHMWPE with vitamin E
  • EPORE® HA collar: TiAl6V4 with EPORE® HA
  • Optional for proximal ulna, extension pieces, connecting part: silver coating
  • Optional for cemented stems, axle, HD proximal ulna: TiN coating
  • Optional for cementless humeral stems: implaFix® HA; HA coating according to ISO 13779-2
  • EPORE® HA colar: EPORE® HA; TCP coating
  • AGILON® stems
  • 5 AGILON® extention pieces: 7,5 mm, 10 mm, 12,5 mm, 15 mm und 17,5 mm
  • MUTARS® (HD) distale humerus sz. 30 mm
  • MUTARS® (HD) ulnar stop
  • FC or SC PE bearings for HD
  • Axle for MUTARS® (HD) distal humerus
  • MUTARS® (HD) proximal ulna
  • 3 MUTARS® humeral extension pieces: 20 mm, 40 mm and 60 mm
  • MUTARS® humeral connecting part 80 mm
  • MUTARS® humeral stem type A modular with EPORE® HA collar
  • MUTARS® humeral stems
  • CE Marking

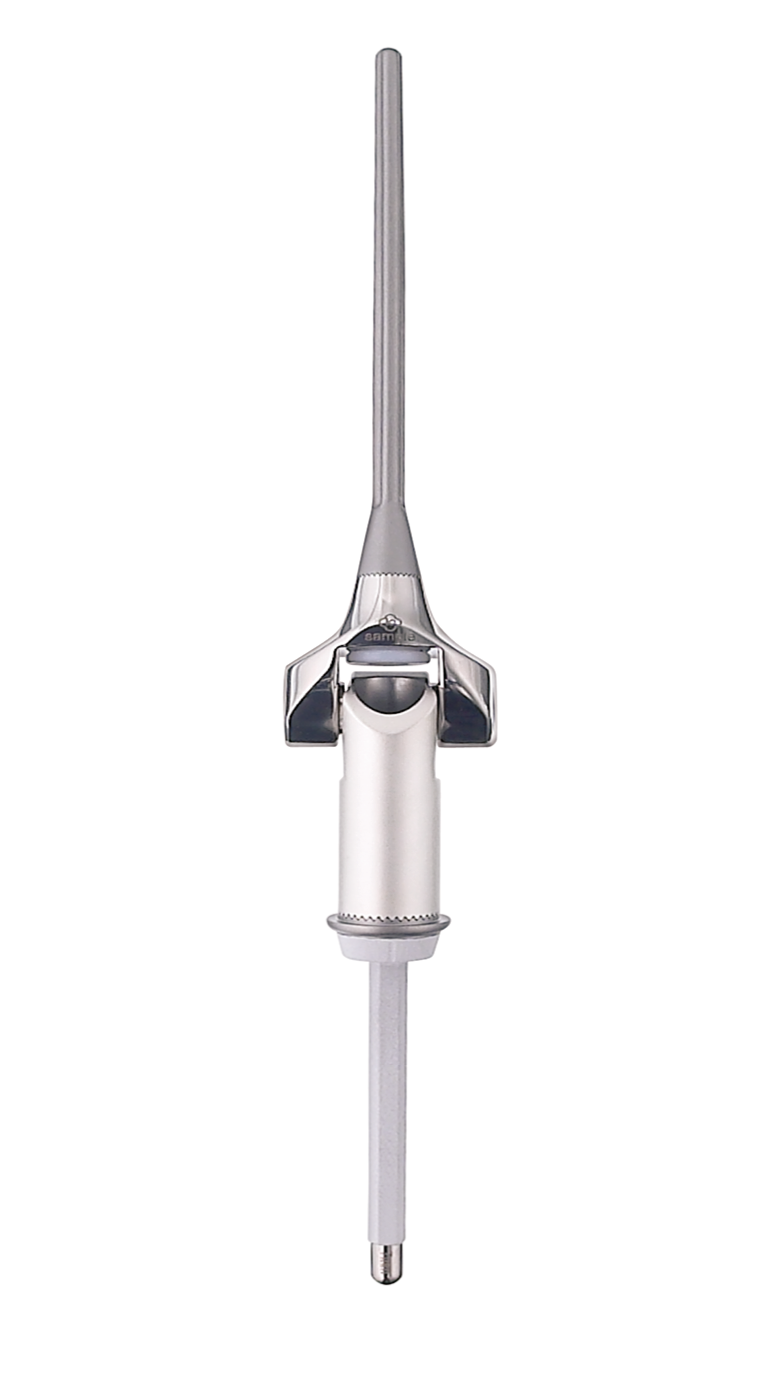

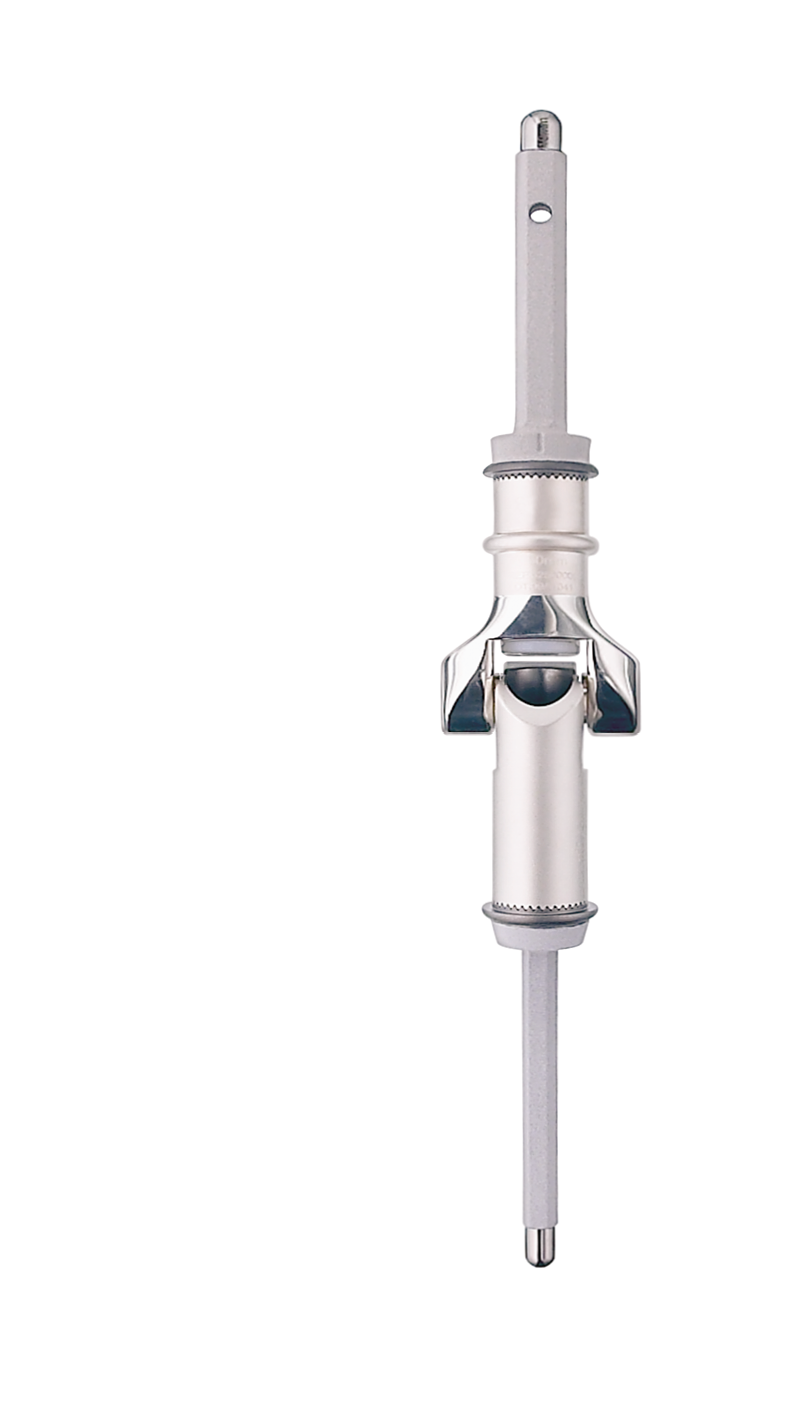

MUTARS® total elbow

MUTARS® total elbow combines the proximal ulna and distal humerus 50 mm components into a modular solution based on the MUTARS® system. This system solution enables oncological elbow reconstruction. This reconstruction allows the preservation of a functional upper limb and thus contributes significantly to patients’ quality of life.

The MUTARS® total elbow is available with an optional silver coating. The MUTARS® total elbow is also available in an HD variant. For more information, please follow this link:  HD Focus Page


  • Tumours
  • Fracture
  • Revision
  • Bone loss associated with Gorham’s disease
  • High modularity and compatibility
  • Rotation adjustment in 10° increments
  • Reconstruction length individually adjustable using extension pieces and connecting part
  • Simplified revision due to the connecting part
  • Cemented, cementless and modular stem options
  • Soft tissue reattachment possible via the attachment tube
  • Extension pieces, connecting part, cementless stems, proximal ulna, (HD) dist. humerus 50 mm:  implatan®; TiAl6V4 according to ISO 5832-3
  • HD proximal ulna, axle (HD), ulna anchorage - bushing: implavit®; CoCrMo according to ISO 5832-12
  • Cemented stems: implavit®; CoCrMo according to ISO 5832-4
  • Ulnar stop: UHMWPE according to ISO 5834-2
  • Ulnar stop HD, PE bearing: implacross® E; cross-linked UHMWPE with vitamin E
  • EPORE® HA collar: TiAl6V4 with EPORE® HA
  • Optional for dist. humerus 50 mm, proximal ulna, extension pieces, connecting part: silver coating
  • Optional for cemented stems, axle, HD proximal Ulna, dist. Humerus 50 mm: TiN coating
  • Optional for cementless humeral stems: implaFix® HA; HA coating according to ISO 13779-2
  • EPORE® HA collar: EPORE® HA; TCP coating
  • MUTARS® humeral stem type A modular with EPORE® HA collar
  • MUTARS® humeral stems
  • 3 MUTARS® humeral extension pieces: 20 mm, 40 mm and 60 mm
  • MUTARS® humeral connecting part 80 mm
  • MUTARS® (HD) distal humerus sz. 50 mm
  • MUTARS® (HD) ulnar stop
  • FC or SC PE bearings for HD
  • Axle for MUTARS® (HD) distal humerus
  • MUTARS® (HD) proximal ulna
  • Reconstruction length ≥60mm humeral and ulnar
  • CE Marking

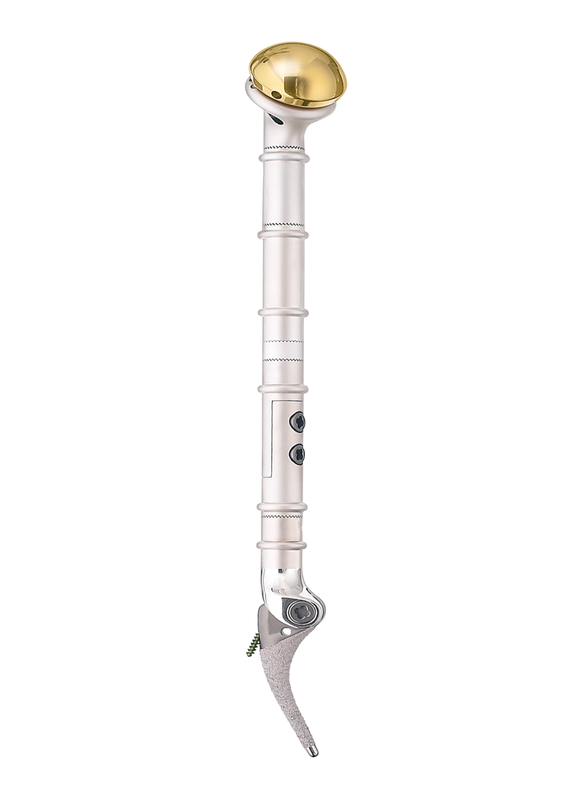

MUTARS® total humerus

MUTARS® Total Humerus enables complete modular reconstruction of the humerus. This system has been developed to meet complex oncological and reconstructive requirements. Thanks to the modular design of the MUTARS® system, both the proximal anatomical and inverse humerus options can be selected intraoperatively with the MUTARS® Total Humerus. This allows for flexible adaptation to the patient’s individual clinical situation.

The simple intraoperative transition from a distal or proximal humeral prosthesis to a total humeral prosthesis can streamline the surgical procedure and help reduce operating time. Retention rings allow for reliable refixation of the soft tissues via the attachment tube, thereby supporting the functional stability of the reconstruction.1), 2), 3)

The MUTARS® total humerus prosthesis is available in an HD version.
For more information, please follow this link:  HD Fokusseite

1) Gosheger G, Hillmann A, Lindner N, Rödl R, Hoffmann C, Bürger H, Winkelmann W. Soft tissue reconstruction of megaprostheses using a trevira tube. Clin Orthop Relat Res. 2001 Dec;(393):264-71. doi: 10.1097/00003086-200112000-00030. PMID: 11764358.
2) Raiss P, Kinkel S, Sauter U, Bruckner T, Lehner B. Replacement of the proximal humerus with MUTARS tumor endoprostheses. Eur J Surg Oncol. 2010 Apr;36(4):371-7. doi: 10.1016/j.ejso.2009.11.001. Epub 2009 Nov 28. PMID: 19945819.
3) Rachbauer AM, Schneider KN, Gosheger G, Deventer N. Endoprosthetic Reconstruction of the Proximal Humerus with an Inverse Tumor Prosthesis. Cancers (Basel). 2023 Nov 8;15(22):5330. doi: 10.3390/cancers15225330. PMID: 38001590; PMCID: PMC10670134.


  • extensive tumours in the region of the humerus, with partial replacement of the shoulder joint and replacement of the humeroulnar joint.
  • high modularity and compatibility
  • Rotation adjustment in 10° increments
  • Reconstruction length individually adjustable using extension pieces and a connecting part
  • simplified revision due to the connecting part
  • cemented, cementless and modular stem options
  • cemented and cementless ulnar component options
  • soft tissue reattachment possible
  • soft tissue reattachment possible via the attachment tube
  • reversal of the materials used in the articulating components possible
  • Lateralisation due to the size of the caps
  • Humeral cap, humerus head, extension pieces, connecting part, ulnar component cementless:  implatan®; TiAl6V4 according to ISO 5832-3
  • (HD) Ulnar component cemented, HD ulnar component cementles: implavit®; CoCrMo according to ISO 5832-4
  • Axle (HD), ulna anchorage - bushing: implavit®; CoCrMo according to ISO 5832-12
  • Glenosphere, ulnar stop: UHMWPE according to ISO 5834-2
  • HD ulnar stop, PE bearing: implacross® E; cross-linked UHMWPE with vitamin E
  • Glenoid : pure titanium, cpTi
  • Humeral cap, optional for cemented stems: TiN coating
  • Optional for humerus head, extension pieces, connecting part, dist. Humerus 50 mm: silver coating
  • Optional for cementless ulnar component: implaFix® Duo; cpTi coating and HA coating according to ISO 13779-2
  • 3 options for the MUTARS® humeral cap: small, medium, large
  • 3 offset options for the MUTARS® humeral cap reverse: 0 mm, +5 mm, +10 mm
  • MUTARS® humerus head
  • 2 MUTARS® humeral reducer options: 20 mm and 100 mm
  • 3 MUTARS® humeral extension pieces: 20 mm, 40 mm and 60 mm
  • MUTARS® humeral connecting part 80 mm
  • MUTARS® (HD) distal humerus sz. 50 mm
  • Ulnar stop (HD)
  • FC or SC PE bearings for HD
  • Axle for MUTARS® (HD) dist. humerus
  • Ulnar component (HD)
  • Reconstruction length ≥190mm
  • CE Marking

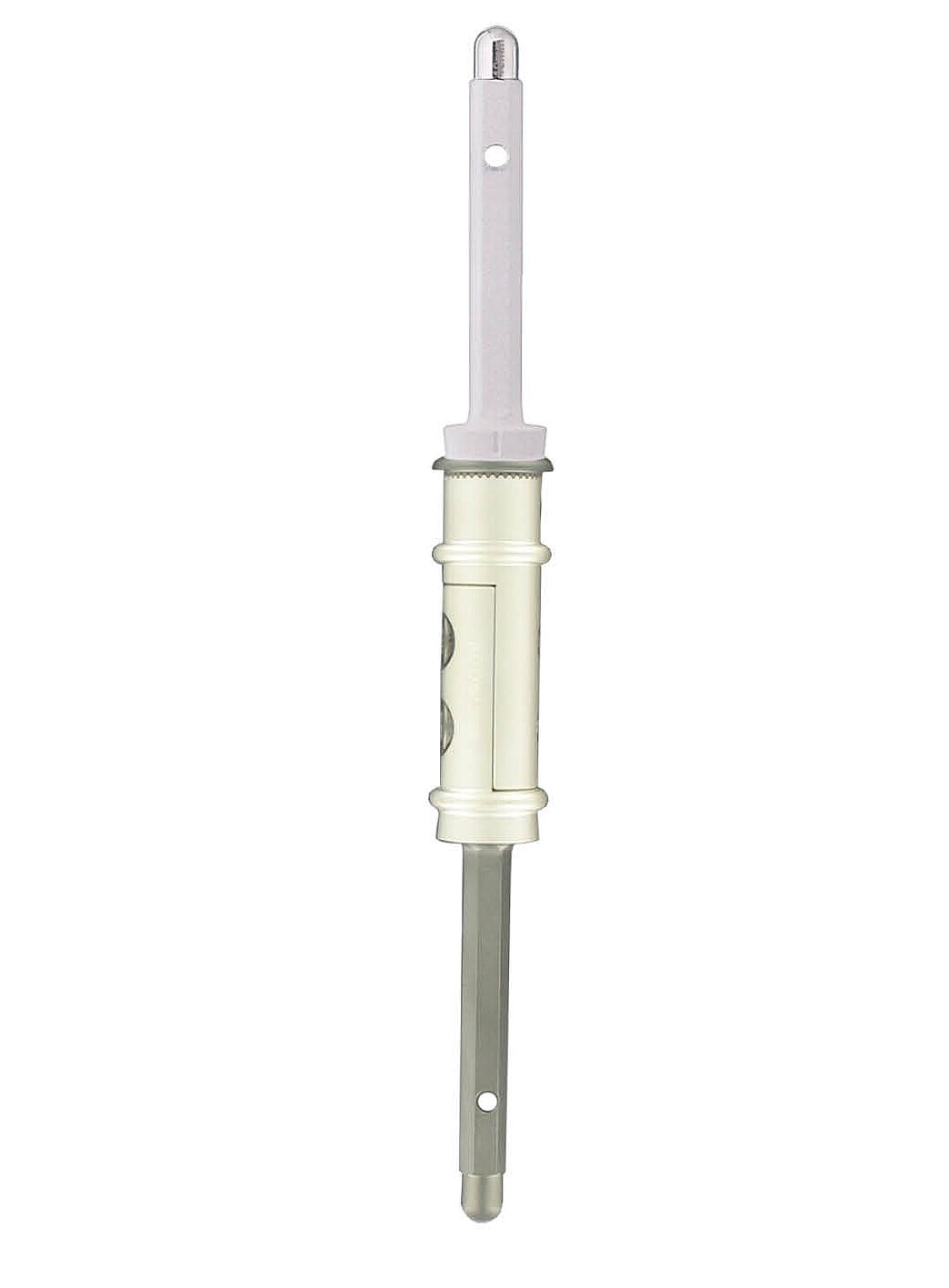

MUTARS® Humerusdiaphyse Silber

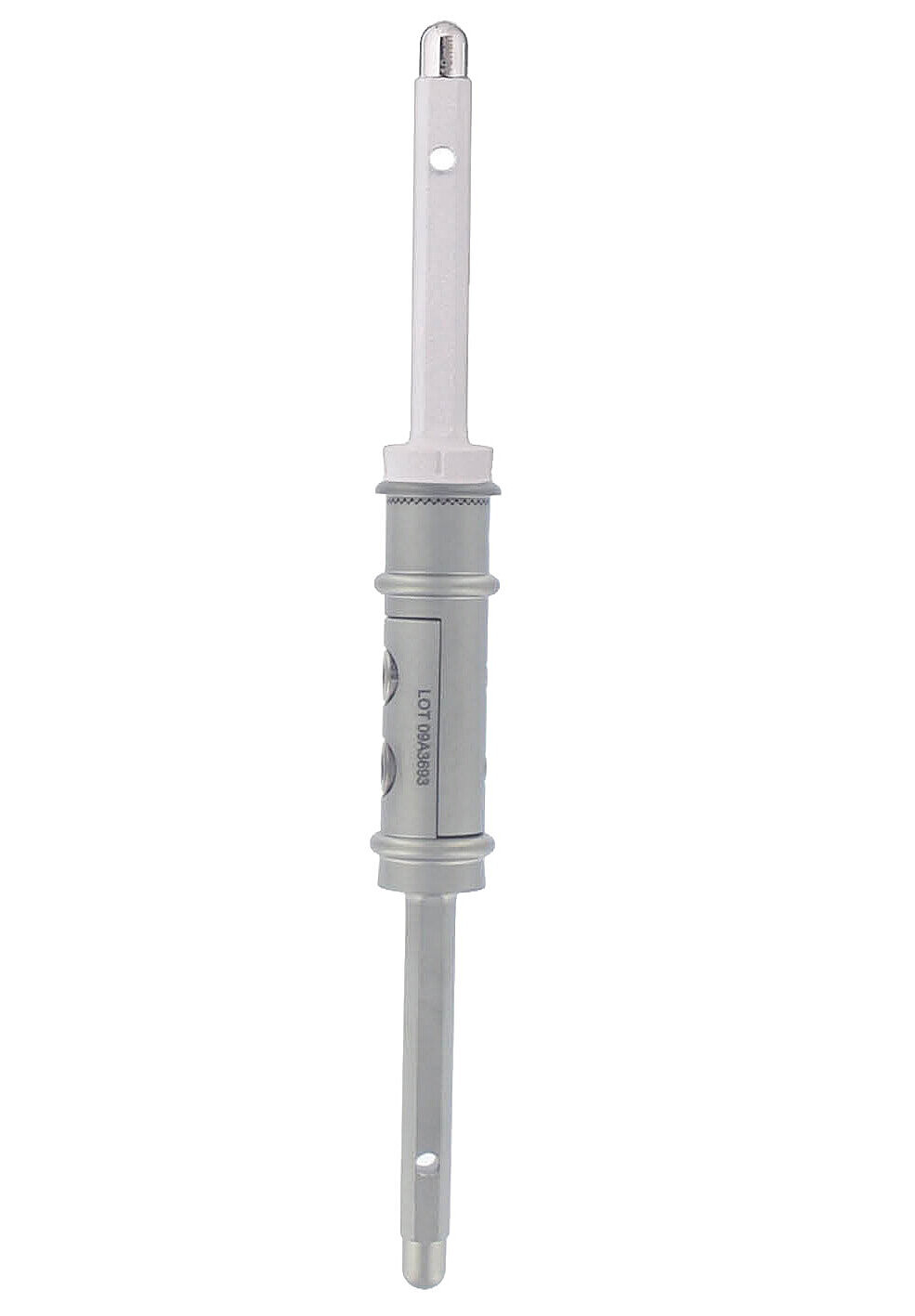

MUTARS® Humerusdiaphyse

MUTARS® humeral diaphysis

The MUTARS® humeral diaphysis is used to replace the diaphyseal section of the humerus. The system supports limb-preserving treatment and is designed specifically for reconstructive and oncological indications.

The MUTARS® humerus diaphyseal implant is optionally available with a silver coating.

  • Tumour in the humeral diaphysis
  • Bone defects in the humeral diaphysis
  • Fracture in the humeral diaphysis
  • high modularity and compatibility
  • Rotation adjustment in 10° increments
  • Reconstruction length individually adjustable using extension pieces
  • cemented and cementless options, as well as modular stem options
  • humerus diaphyseal implant, extension pieces, connecting part, cementless stems: implatan®; TiAl6V4 according to ISO 5832-3
  • cemented stems: implavit®; CoCrMo according to ISO 5832-4
  • EPORE® HA collar: TiAl6V4 with EPORE® HA
  • optional for humerus diaphyseal implant, extension pieces, connecting part: silver coating
  • optional for cemented stems: TiN coating
  • optional for cementless humeral stems: implaFix® HA; HA coating according to ISO 13779-2
  • EPORE® HA collar: EPORE® HA; TCP coating
  • 2 options for the MUTARS® humeral diaphyseal implant
  • 3 MUTARS® humeral extension pieces: 20 mm, 40 mm and 60 mm
  • MUTARS® humeral connecting part sz. 80 mm
  • MUTARS® humeral stem type A modular with  EPORE® HA collar
  • MUTARS® humeral stems
  • CE Marking

EPORE® diaphyseal implant

The state-of-the-art EPORE® diaphyseal implant is a fully additively manufactured implant system designed for the treatment of bone defects of various etiologies in the diaphyseal regions of the femur, tibia, and humerus. Implantation in combination with a standard intramedullary nail is easy to learn and requires only a limited number of instruments in the operating room.

EPORE® was developed to achieve high porosity combined with a low modulus of elasticity. The material closely mimics the structure of natural bone, thereby promoting bone ingrowth into the implant and supporting biological integration.

  • Fractures or comminuted fractures in the diaphysis of the femur, tibia, and humerus
  • metastasis-related bone loss in the diaphysis of the femur, tibia, and humerus
  • traumatic bone defects where an external fixator is not indicated for medical reasons
  • one-piece implant system
  • can be combined with commercially available intramedullary nails
  • EPORE®; TiAl6V4: EPORE® diaphyseal implant
  • reconstruction length: 40 mm – 100 mm
  • diameter: 28 mm – 34 mm
  • inner diameter: 15.5 mm
  • CE Marking

Back to anatomical Overview
