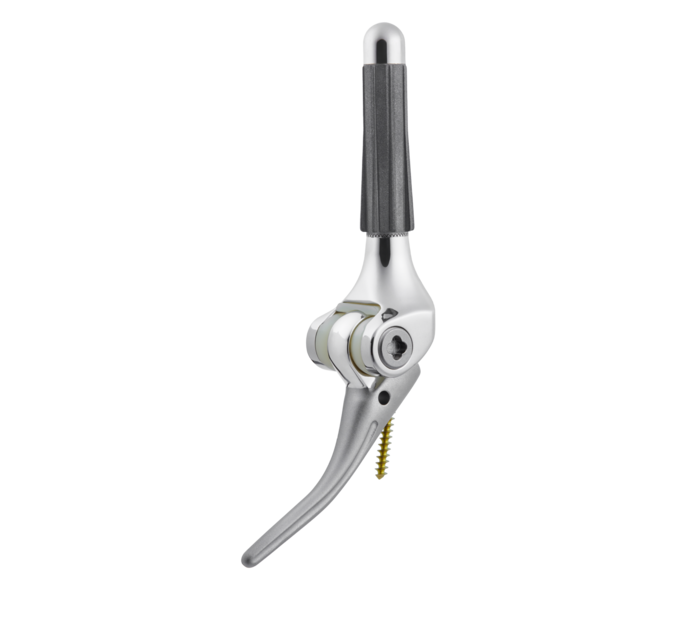

MUTARS® HD elbow system
The HD elbow is a further development of our MUTARS® elbow, whilst retaining many of the original design features. With this further development, the product range has also been expanded to offer a wide variety of high-quality standard products, enabling the best possible solution to be found quickly and easily during surgery.
The most notable innovation of the HD Elbow System is the introduction of implacross® E PE bearings. implacross® E is a vitamin E-doped, cross-linked ultra-highmolecular-weight polyethylene (UHMW-PE). Whilst the cross-linking of the polyethylene increases its wear resistance, the addition of vitamin E enhances the materials long-term stability.1 implacross® E is therefore a good choice of material for the PE bearings which, together with the ulnar component, form the sliding pair of the HD elbow.
[1]: Testergebnisse interner in-vitro-Tests im Vergleich zur unbeschichteten CoCrMo M-O-M-Versorgung.

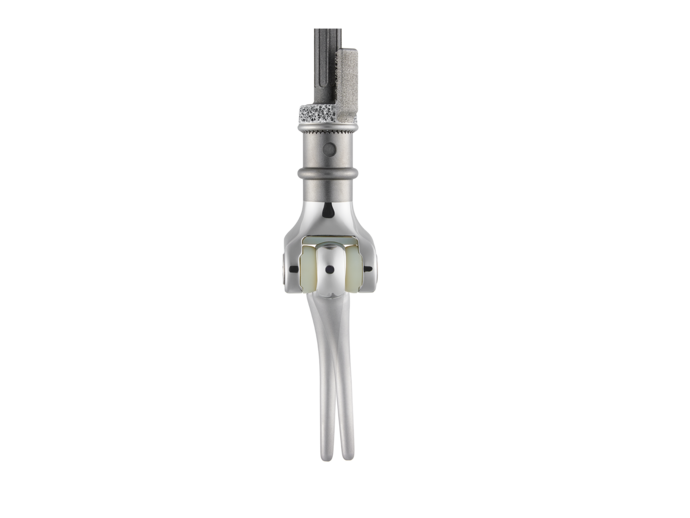

PE bearings
Two PE bearing options are available. In addition to the fully constrained (FC) option, a semi-constrained (SC) option can now be selected intraoperatively. The partially guided SC PE bearing allows for medial and lateral deflection of ± 3.5° in each direction. This defined range of motion supports a more physiological transfer of force and can minimise the risk of premature stem loosening. Complementing the SC bearing is the FC PE bearing, which offers the option of a fully guided elbow joint, thereby ensuring maximum stability in situations requiring increased guidance.

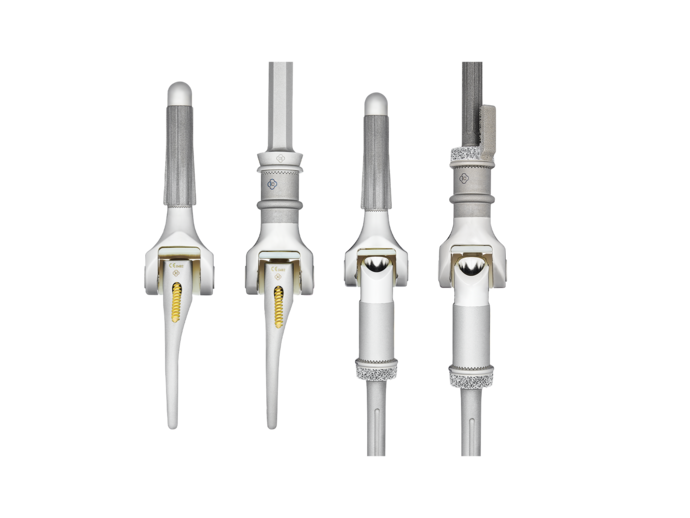

Compatibilities
In keeping with our MUTARS® philosophy, the various distal humeral and ulnar components within the HD elbow system are compatible with one another. This enables bone-preserving surgical planning, which, in the event of unforeseen circumstances, allows for an intraoperative switch to the next larger implant component without any problems and also facilitates unilateral revisions.
